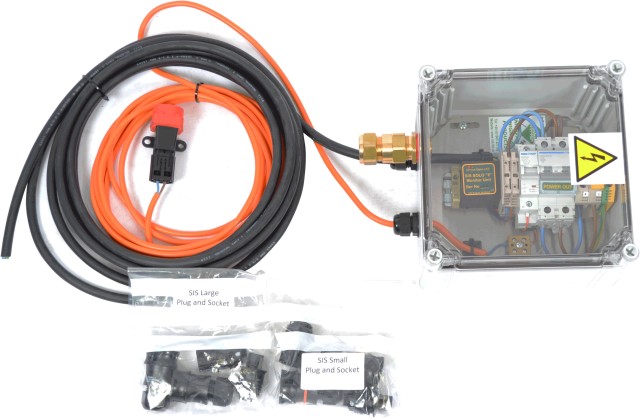

We offer a range of standard underground units to accept 3 core SWA cable from 6.0mm to 25.0mm.
The enclosures are IP67 Polycarbonate with clear lids and fitted with IP68 brass and plastic cable glands.
There are two enclosure sizes available 200mm x 200mm suitable for 6.0mm or 10.0mm cable which can be used in a 450mm x 450mm chamber.
A 300mm x 300mm enclosure for 16.0mm to 25.0mm cable which will require a 600mm x 450mm chamber.
Units can be supplied as ONE Way (loop in) or TWO WAY (loop in loop out), they can also have a spur supply if requested. Units are supplied with 5m of flex as standard and with inline plug and sockets for the power and sensor cables.
In addition to our passive undergrounds, we can also offer MOBS (Mechanical Only Breakaway System) units, with or without an RCBO, again these can supplied in 200 x 200 enclosures or 300 x 300 enclosures subject to cable size.
A full listing of the different units is given below.
We can also supply an enclosure mounting plate for attaching to a chamber wall to support the underground unit, which should be mounted as high as possible within the chamber.
| GSOLO1-E(S) | SIS SOLO E Underground ONE way unit M20 gland 6-10mm cable. Supplied with 5 metres of flex and plugs and sockets (200 x 200 enclosure). |
| GSOLO2-E(S) | SIS SOLO E Underground TWO way unit M20 glands 6-10mm cable. Supplied with 5 metres of flex and plugs and sockets (200 x 200 enclosure). |
| GSOLO1-E | SIS SOLO E Underground ONE way unit M20 gland 6-10mm cable. Supplied with 5 metres of flex and plugs and sockets (300 x 300 enclosure). |
| GSOLO2-E | SIS SOLO E Underground TWO way unit M20 glands 6-10mm cable. Supplied with 5 metres of flex and plugs and sockets (300 x 300 enclosure). |
| GSOLO3-E | SIS SOLO E Underground ONE way unit M25 gland 16-25mm cable. Supplied with 5 metres of flex and plugs and sockets (300 x 300 enclosure). |
| GSOLO4-E | SIS SOLO E Underground TWO way unit M25 glands 16-25mm cable. Supplied with 5 metres of flex and plugs and sockets (300 x 300 enclosure). |
| GMOBS1(S) | MOBS ONE way unit M20 (6-10mm) in IP67 enclosure, standard plate with DIN terminals, 32A Isolator and DIN mounted fuse. Supplied with 5 metres of flex and plug and socket. (200x 200 Enclosure) |
| GMOBS2(S) | MOBS TWO way unit M20 (6-10mm) in IP67 enclosure, standard plate with DIN terminals, 32A Isolator and DIN mounted fuse. Supplied with 5 metres of flex and plug and socket (200x 200 Enclosure) |
| GMOBS1 | MOBS ONE way unit M20 (6-10mm) in IP67 enclosure, standard plate with DIN terminals, 32A Isolator and DIN mounted fuse. Supplied with 5 metres of flex and plug and socket. (300x 300 Enclosure) |
| GMOBS2 | MOBS TWO way unit M20 (6-10mm) in IP67 enclosure, standard plate with DIN terminals, 32A Isolator and DIN mounted fuse. Supplied with 5 metres of flex and plug and socket (300x 300 Enclosure) |
| GMOBS3 | MOBS ONE way unit M20 (6-10mm) in IP67 enclosure, standard plate with DIN terminals, 32A Isolator and DIN mounted fuse. Supplied with 5 metres of flex and plug and socket (300x 300 Enclosure) |
| GMOBS4 | MOBS TWO way unit M25 (16-25mm) in IP67 enclosure, standard plate with DIN terminals, 32A Isolator and DIN mounted fuse. Supplied with 5 metres of flex and plug and socket (300x 300 Enclosure) |
| GMOBS1(S) RCBO | MOBS ONE way unit M20 (6-10mm) in IP67 enclosure, standard plate with DIN terminals,10A 30mA DP RCBO. Supplied with 5 metres of flex and plug and socket. (200x 200 Enclosure) |
| GMOBS2(S) RCBO | MOBS TWO way unit M20 (6-10mm) in IP67 enclosure, standard plate with DIN terminals,10A 30mA DP RCBO. Supplied with 5 metres of flex and plug and socket (200x 200 Enclosure) |
| GMOBS1 RCBO | MOBS ONE way unit M20 (6-10mm) in IP67 enclosure, standard plate with DIN terminals,10A 30mA DP RCBO. Supplied with 5 metres of flex and plug and socket. (300x 300 Enclosure) |
| GMOBS2 RCBO | MOBS TWO way unit M20 (6-10mm) in IP67 enclosure, standard plate with DIN terminals, 10A 30mA DP RCBO. Supplied with 5 metres of flex and plug and socket (300x 300 Enclosure) |
| GMOBS3 RCBO | MOBS ONE way unit M25 (16-25mm) in IP67 enclosure, standard plate with DIN terminals, 10A 30mA DP RCBO. Supplied with 5 metres of flex and plug and socket (300x 300 Enclosure) |
| GMOBS4 RCBO | MOBS TWO way unit M25 (16-25mm) in IP67 enclosure, standard plate with DIN terminals, 10A 30mA DP RCBO. Supplied with 5 metres of flex and plug and socket (300x 300 Enclosure) |
| GMULTI2A | SIS SOLO Underground to supply TWO outgoing circuits. M20/25 gland 6-25mm cable. Supplied with 4 additional glands for armoured cable. |
| GMULTI3A | SIS SOLO Underground to supply THREE outgoing circuits. M20/25 gland 6-25mm cable. Supplied with 6 additional glands for armoured cable. |
| GMULTI4A | SIS SOLO Underground to supply FOUR outgoing circuits. M20/25 gland 6-25mm cable. Supplied with 8 additional glands for armoured cable. |
| GSPUR1 | Fused spur supply added to standard underground unit. Includes 32A isolator and DIN mounted 6A fuse. |
| S227 | Stainless Steel Underground Mounting Plate for 200 x 200 Enclosure |
| S228 | Stainless Steel Underground Mounting Plate for 300 x 300 Enclosure |
