PACS offer a bespoke feeder pillar design service, based on a customer's schematic and specification we will produce a layout drawing and cost. We can also supply CAD drawings of layouts for designers to use.
Pillars can be small feeder pillars from 600mm wide up to 2.5m wide based on the equipment required. We can base the design around any chosen brand of feeder pillar Lucy, Charles Endirect etc.

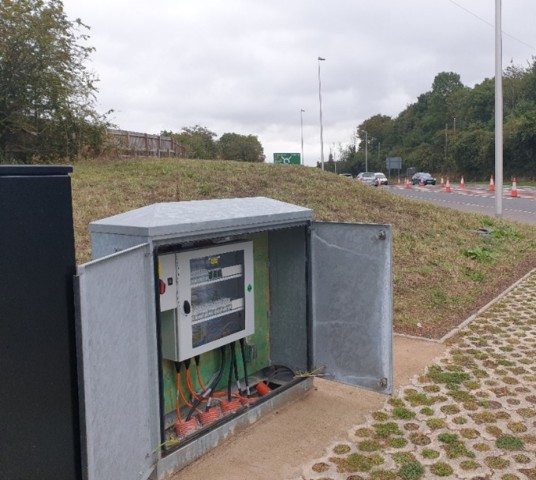

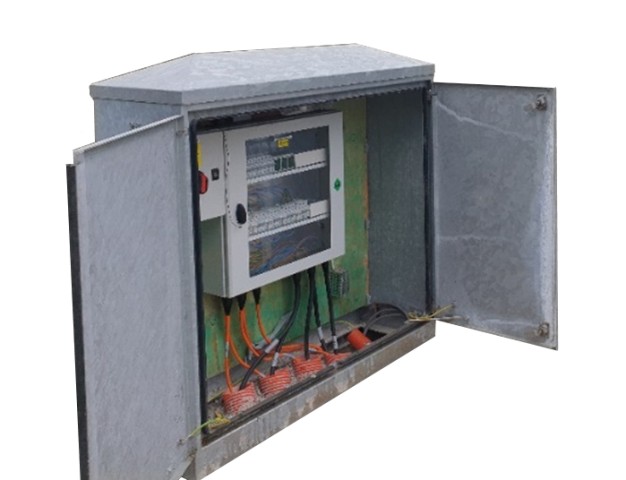

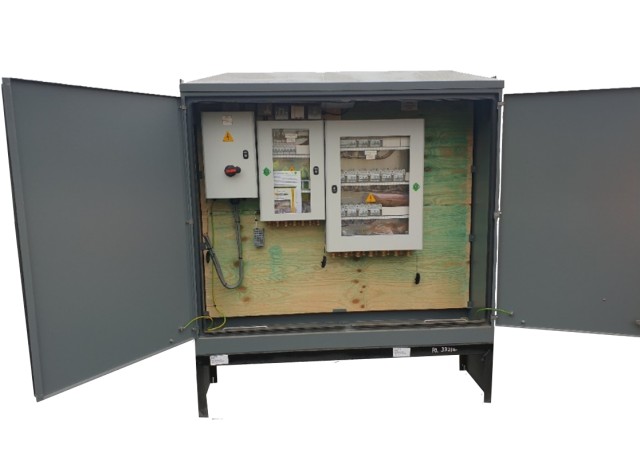

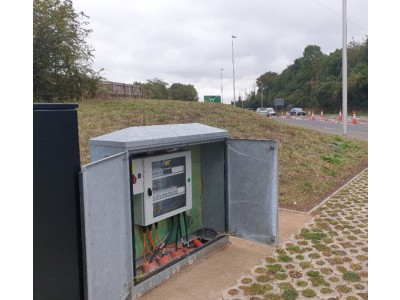

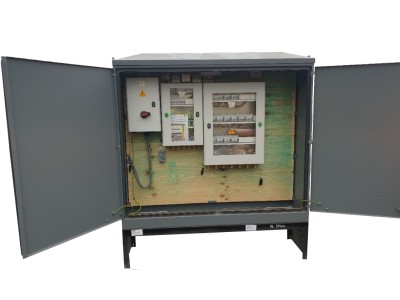

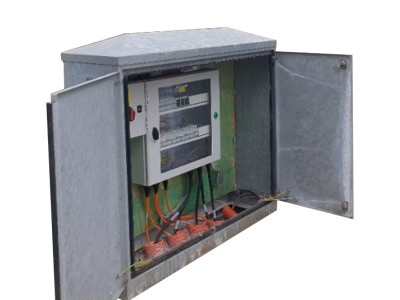

The images below show two typical feeder pillar examples.

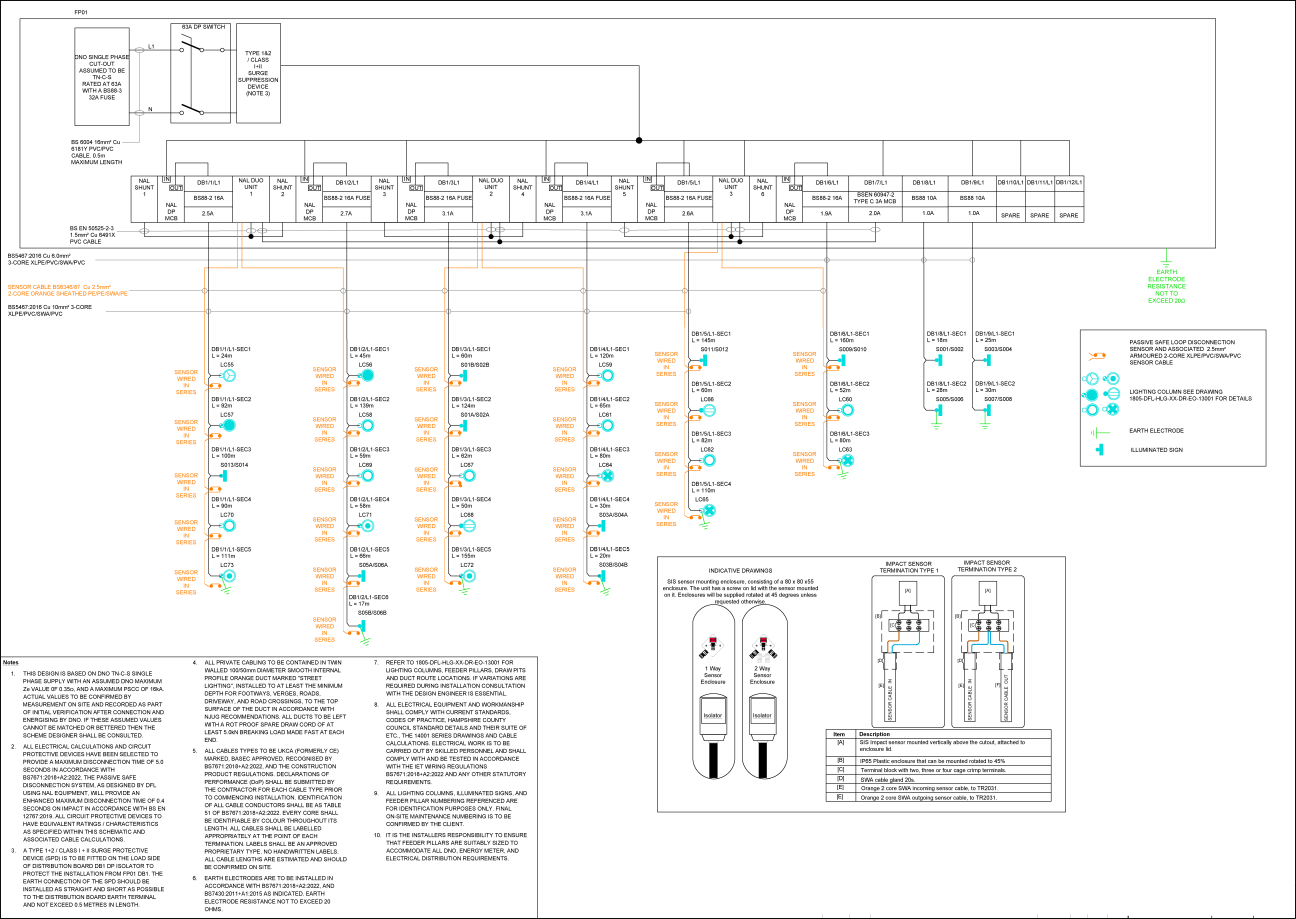

Schematic Drawing
This is a typical feeder pillar schematic, it shows the number of circuits and the number of columns and signs, current ratings and cable sizes. This schematic shows passive circuits and non-passive circuits which can also be accommodated. With this information we can put together the correct design package.

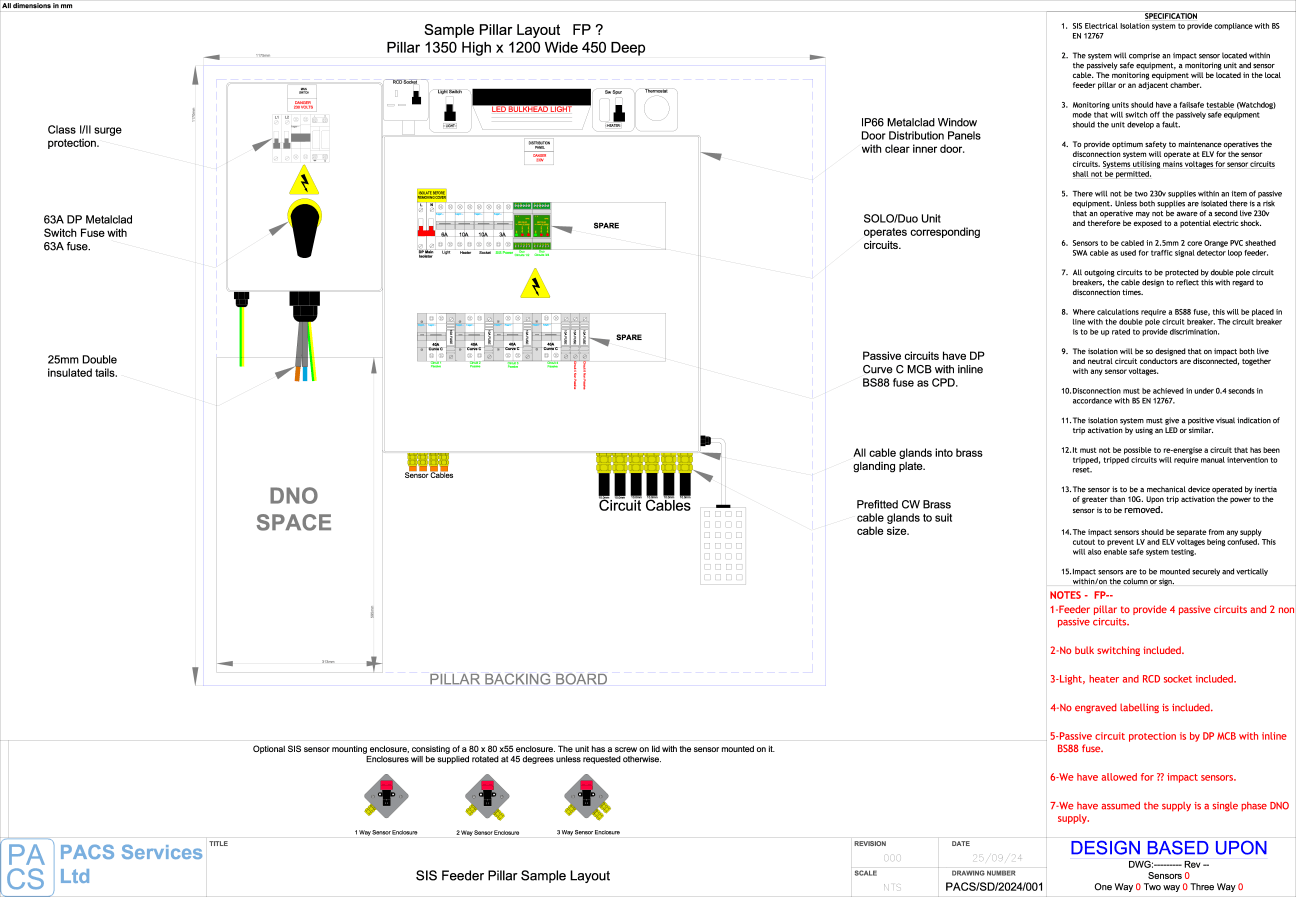

Layout Drawing
